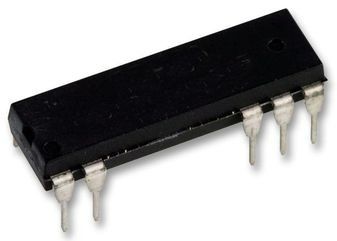

Conv DC-DC Single Step Down 10-Pin PDIP Tube
The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1W nominal, galvanically-isolated output power capability, this range of DC/DCs offer very low output noise, thermal protection, and high accuracy. The DCR01 family is implemented in standard molded IC packaging, giving standard JEDEC outlines suitable for high-volume assembly. The DCR01 is manufactured using the same technology as standard IC packages, thereby achieving very high reliability.
UL1950 RECOGNIZED DIP-18, SO-28 53W/in3 (3.3W/cm3)POWER DENSITY DEVICE-TO-DEVICE SYNCHRONIZATION THERMAL PROTECTION 1000Vrms ISOLATION 400kHz SWITCHING 125 FITS AT 55°C ±10% INPUT RANGE SHORT-CIRCUIT PROTECTED 5V, 12V, 24V INPUTS 3.3V, 5V OUTPUTS HIGH EFFICIENCY APPLICATIONS
- POINT-OF-USE POWER CONVERSION
- DIGITAL INTERFACE POWER
- GROUND LOOP ELIMINATION
- POWER-SUPPLY NOISE REDUCTION
Характеристики
| Бренд | Texas Instruments |
|---|---|
| Описание продукта | 22.86 x 6.61 x 3.94 mm |
| Lead Finish | Gold |
| Рабочая температура | -40 to 85 °C |
| Schedule B | 8504409580 |
| HTSN | 8542390001 |
| Страна происхождения | United States |
| Output Voltage | 3.3 V |
| Supplier | PDIP |
| Type Prod | Step Down |
| Line Regulation | 1 mV/V |
| Output Type | Fixed |
| Max Proce | 270 |
| Switching | Да |
| Switching | 880 kHz |
| Number Of | 1 |
| Output Current | 0.39 A |
SKU: DCR011203P
