Conv DC-DC Single-OUT Step Down 2.5V to 4.5V 9-Pin WLCSP Embossed T/R
BU9006GUZ is a synchronous rectification switching regulator for RF power amplifier, small and highly effective. It have an excellent load response and the miniaturization of external parts have been achieved by the current mode method and 2.0MHz (Typ.) high-speed switching operation. It have the built in switch for the I / O bypass that operates by automatic or external setting.
·Input voltage range 2.5V to 4.5V
·Output voltage range 0.95 V to 4.5V (Reference voltage input range 0.5V to VIN)
·Current mode control
·Integrated output FET synchronous rectifier step-down DC / DC converter
·Switching frequency 2.0MHz (Typ.)
·Maximum output current 750mA (Switching regulator part)
·Maximum output current 1.2A (Bypass switch part)
·PchFET on resistance at bypass mode 70mO (Typ.)

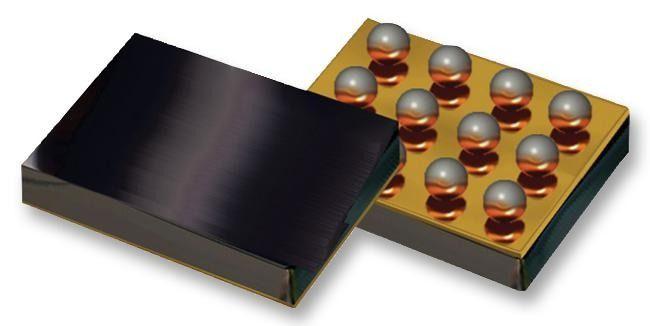

·1.6mm×1.6mm, t=0.4mm (Max.), WLCSP package(VCSP35L1)
·Output voltage range 0.95 V to 4.5V (Reference voltage input range 0.5V to VIN)
·Current mode control
·Integrated output FET synchronous rectifier step-down DC / DC converter
·Switching frequency 2.0MHz (Typ.)
·Maximum output current 750mA (Switching regulator part)
·Maximum output current 1.2A (Bypass switch part)
·PchFET on resistance at bypass mode 70mO (Typ.)
·1.6mm×1.6mm, t=0.4mm (Max.), WLCSP package(VCSP35L1)
Характеристики
| Бренд | ROHM |
|---|---|
| Описание продукта | 1.6 x 1.6 x 0.3(Max) |
| Lead Finish | Tin|Silver|Copper |
| Рабочая температура | -35 to 85 °C |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Output Voltage | 0.95 to 4.5 V |
| Maximum I | 4.5 V |
| Operating | 2.5 to 4.5 V |
| Supplier | WLCSP |
| Type Prod | Step Down |
| Screening Level | Industrial |
| Output Type | Adjustable |
| Max Proce | 260 |
| Switching | Да |
| Switching | 1500 to 2500 kHz |
| Number Of | 1 |
| Minimum I | 2.5 V |
| Output Current | 0.75 A |
SKU: BU9006GUZ-E2
