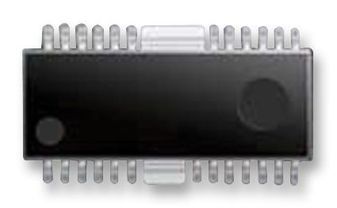

Conv DC-DC Dual Step Down 27-Pin(25+2Tab) HSOP T/R
The BD9302FP is a 2channel step-down switching regulator controller with a 2.5MHz, 2A power switch and available 2.5MHz high speed switching frequency with external resistance, supporting for a wide input voltage range of 6 to 18V.
·2ch Switching regulator
·200kHz to 2.5MHz Operating Frequency
·Wide operating INPUT Range 6 to 18V
·200kHz to 2.5MHz Operating Frequency
·Wide operating INPUT Range 6 to 18V
Характеристики
| Бренд | ROHM |
|---|---|
| Описание продукта | 13.6 x 5.4 x 1.9 mm |
| Lead Finish | Tin/Copper |
| Рабочая температура | -40 to 85 °C |
| Schedule B | 8542310000 |
| HTSN | 8542310001 |
| Operating | 6 to 18 V |
| Supplier | HSOP |
| Type Prod | Step Down |
| Max Proce | 260 |
| Switching | Да |
| Switching | 200 to 2500 kHz |
| Number Of | 2 |
| Output Current | 2 A |
SKU: BD9302FP-E2
