Controller 128-Pin TQFP

The USB2602 is an Integrated “combo” High-Speed USB hub and Flash Media Controller. The Flash media controller permanently resides on Port 1 of the Integrated USB hub High-Speed Hub The integrated SMSC Hub is fully compliant with the USB 2.0 Specification and will attach to a USB host as a Full-Speed Hub or as a Full-/High-Speed Hub. The Hub supports Low-Speed, Full-Speed, and High-Speed (if operating as a High-Speed Hub) downstream devices on all of the enabled downstream ports. A dedicated Transaction Translator (TT) is available for each downstream facing port. This architecture ensures maximum USB throughput for each connected device when operating with mixed-speed peripherals. The Hub works with an external USB power distribution switch device to control VBUS switching to downstream ports, and to limit current and sense over-current conditions. All required resistors on the USB ports are integrated into the Hub. This includes all series termination resistors on D+ and D– pins and all required pull-down and pull-up resistors on D+ and D– pins. The over-current sense inputs for the downstream facing ports have internal pull-up resistors. Three externally available ports are available for general USB device connectivity. Flash Media Controller The Bulk Only Mass Storage Class Peripheral Controller intended for supporting CompactFlash (CF and CF Ultra I/II) in True IDE Mode only, SmartMedia (SM) and xD cards, Memory Stick (MS), Memory Stick DUO (MSDUO) and Memory Stick Pro (MSPRO), Secure Digital (SD), and MultiMediaCard (MMC) flash memory devices. It provides a single chip solution for the most popular flash memory cards in the market. The device consists of buffers, Fast 8051 microprocessor with expanded scratchpad, and program SRAM, and CF, MS, SM and SD controllers. The SD controller supports both SD and MMC devices. SM controller supports both SM and xD cards. 12K bytes of scratchpad SRAM and 768 Bytes of program SRAM are also provided. Eleven GPIO pins are provided for indicators, external serial EEPROM for OEM ID and system configuration information, and other special functions. Internal power FETs are provided to directly supply power to the xD/SM, MMC/SD and MS/MSPro cards. The internal ROM program is capable of implementing any combination of single or multi-LUN CF/SD/MMC/SM/MS reader functions with individual card power control and activity indication

• Hub Controller
• Provides Three USB 2.0 Downstream Ports via internal USB 2.0 Hub
  • Multi Transaction Translator for FS/LS devices attached Flash Media Controller
• Complete System Solution for interfacing SmartMediaTM (SM) or xD Picture CardTM (xD)1, Memory StickTM (MS), High Speed Memory Stick (HSMS), Memory Stick PRO (MSPRO), MS DuoTM, Secure Digital (SD), Mini-Secure Digital (Mini-SD), TransFlash (SD), MultiMediaCardTM (MMC), Reduced Size MultiMediaCard (RS-MMC), NAND Flash, Compact FlashTM (CF) and CF UltraTM I & II, and CF form-factor ATA hard drives to USB 2.0 bus
  • Supports USB Bulk Only Mass Storage Compliant Bootable BIOS
• Support for simultaneous operation of all above devices. (only one at a time of each of the following groups supported: CF or ATA drive, SM or XD or NAND, SD or MMC)
• On-Chip 4-Bit High Speed Memory Stick and MS PRO Hardware Circuitry
• On-Chip firmware reads and writes High Speed Memory Stick and MS PRO
• 1-bit ECC correction performed in hardware for maximum efficiency
• Hardware support for SD Security Command Extensions
• 3.3 Volt I/O with 5V input tolerance on VBUS, Port Power and Over-Current Sense pins
• On-chip power FETs for supplying flash media card power with minimum board components
• 8051 8 bit microprocessor
  • Provides low speed control functions
  • 30 MHz execution speed at 4 cycles per instruction average
  • 12K Bytes of internal SRAM for general purpose scratchpad
  • 768 Bytes of internal SRAM for general purpose scratchpad or program execution while re-flashing external ROM
  • Double Buffered Bulk Endpoint
  • Bi-directional 512 Byte Buffer for Bulk Endpoint
  • 64 Byte RX Control Endpoint Buffer
  • 64 Byte TX Control Endpoint Buffer
• Internal Program Memory Interface
  • 64K Byte Internal Code Space
• On Board 24MHz Crystal Driver Circuit
• Can be clocked by an external 24MHz source
• On-Chip 1.8V Regulator for Low Power Core Operation
• Internal PLL for 480MHz USB 2.0 Sampling, Configurable MCU clock
• 11 GPIOs for special function use: LED indicators, button inputs, power control to memory devices, etc.
  • Inputs capable of generating interrupts with either edge sensitivity
• Configuration of Hub and Flash Media features controlled either by internal defaults or via single external EEPROM. User configurable features:
  • Full or Partial Card compliance checking
  • LUN configuration and assignment
  • Write Protect Polarity
  • Cover Switch operation for xD compliance
  • Inquiry Command operation
  • SD Write Protect operation
  • Older CF card support
  • Force USB 1.1 reporting
  • Internal or External Power FET operation
• Compatible with Microsoft WinXP, WinME, Win2K SP3&4, Apple OS10 and Linux Multi-LUN Mass Storage Class Drivers
• Win2K, Win98/98SE and Apple OS8.6 and OS9 Multi-LUN Mass Storage Class Drivers are available from SMSC

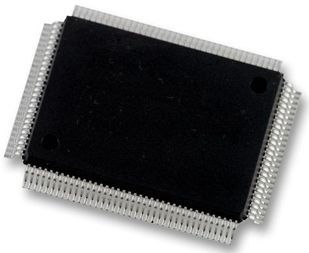

• 128 Pin TQFP Package (1.0mm height, 14mm x14mm footprint); lead-free RoHS compliant package also available
