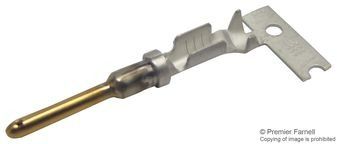

Contact PIN Crimp ST Cable Mount Strip
The HDSF Size 16 Pin contacts system is a stamped and formed version of the screw machine MIL-C-39029 contacts. The Size 16 contact system offers a thicker and higher performance alloy base metal, providing the following superior benefits over most of the competitive stamped and formed size 16 contact systems.
- Pin Contact with Wire Insulation Support
- Increased terminal/beam strength
- Greater resistance to stress relaxation
- Increased current carrying ability due to lower T-Rise(20%)
- Wire Size: 20-18 AWG
- Material and Finish: Copper Alloy, Gold
- Available in Strip Form
Характеристики
| Бренд | TE Connectivity |
|---|---|
| Gender | PIN |
| Описание продукта | 23.21 x 3.81 x 4.14 mm |
| Connector Type | Connector Power |
| Body Orie | Straight |
| Terminati | Crimp |
| Contact Plating | Gold |
| Contact Type | Signal |
| Длина | 23.21 mm |
| Schedule B | 8536904000 |
| HTSN | 8536904000 |
| Страна происхождения | United States |
| Wire Size | 18, 20 AWG |
| Contact Size | 16 |
SKU: 1924463-1
