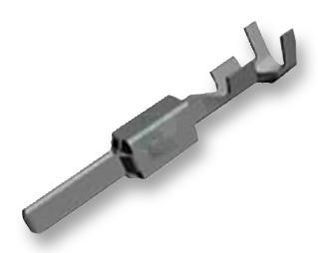

Contact PIN Crimp ST Cable Mount Strip
Contact PIN Crimp ST Cable Mount Strip
- Protection of the contact springs
- No over elongation of the contact springs possible under normal circumstances
- No possibility to connect from the rear side
- Protection against mechanical damage
- Good guiding in the cavity
- Secondary locking possible (from 4 directions)
Характеристики
| Бренд | TE Connectivity |
|---|---|
| Gender | PIN |
| Описание продукта | 27.4 x 4.7 x 4.5 mm |
| Shielded | Нет |
| Body Orie | Straight |
| Terminati | Crimp |
| Contact Plating | Pre-Tin |
| Contact Type | Power |
| Длина | 27.4 mm |
| Contact M | Bronze Powder |
| Schedule B | 8538907040 |
| HTSN | 8536904000 |
| Страна происхождения | Czech Republic |
| Series Name | MCP |
| Wire Size | 20, 24 AWG |
| Family | FASTON Terminals / Positive Lock Receptacles |
SKU: 1-965982-1
