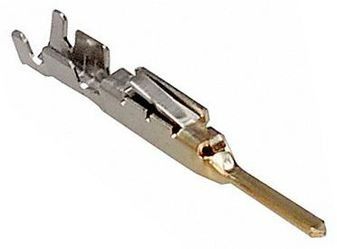

Contact PIN Crimp ST Cable Mount Bag
Contact PIN Crimp ST Cable Mount Bag
- Modular contact inserts – sizes 3-4-6-8-10-12
- Optimum flexibility, easy handling, quick assembly
- Rational mixing of connectors, i. e. application specific customer requirements can be solved
- Fixing frame to hold the interchangeable modules, same design for upper and lower part
- Storage costs are reduced
- Polarized use of the modules in a fixing frame
- Power- and signal transmission with one connector
- Leading grounding contact
- Modules, tolerant to electro-magnetic waves, for bus system interfaces
Характеристики
| Бренд | TE Connectivity |
|---|---|
| Gender | PIN |
| Описание продукта | 22.05 x 2.58 x 2.6 mm |
| Connector Type | Connector Power |
| Body Orie | Straight |
| Lead Finish | Gold |
| Terminati | Crimp |
| Contact Plating | Gold Over Nickel |
| Contact Type | Power |
| Длина | 22.05 mm |
| Contact M | Copper Alloy |
| Schedule B | 8538907040 |
| HTSN | 8536904000 |
| Страна происхождения | Japan |
| Рабочая температура | -55 to 105 °C |
| Maximum C | 5 A |
| Family | Dynamic Series Wire-Applied Connectors |
SKU: 1318111-1
