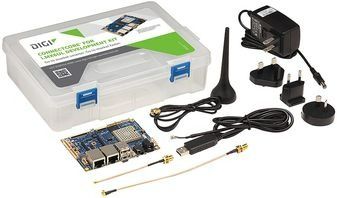

ConnectCore 6UL System-on-Module Development Kit

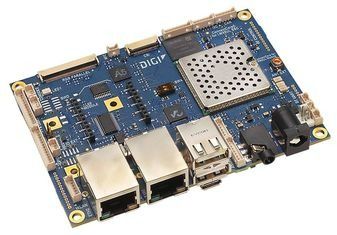

The ConnectCore 6UL Development Kit delivers a complete off-theshelfSingle Board Computer (SBC) built on the ConnectCore 6ULSystem-on-Module (SOM).The SBC is a proven reference design for ConnectCore 6UL modulebaseddevelopment, suited for rapid prototyping; as a productizationreadyproduct platform, it requires little to no hardware developmenteffort. Its standard form factor is the ideal solution for connectedapplications demanding professional reliability and flexibility inmedical/healthcare, transportation, energy, utility, agriculture,building automation and industrial markets.

• Pico-ITX form factor (100 mm x 72 mm)
• NXP i.MX6UL with 256K/1GB NAND flash, 256K/1GB DDR3
• Pre-certified dual-band 802.11ac Wi-Fi connectivity
• Bluetooth 4.2, with Bluetooth Low Energy support
• NFC Forum Type 2 Tag compliant capabilities
• Dual-10/100 Mbit Ethernet networking
• Ready for cellular connectivity and XBee RF integration
• Full and customizable set of peripherals and interfaces
• Off-the-shelf and productization-ready SBC platform
• Industrial operating temperature range
• Complete Yocto Project Linux BSP with source code
