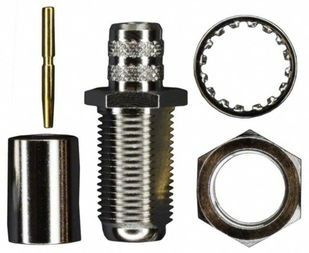

Conn Type F RCP 75Ohm Crimp ST Panel Mount

The F-Type straight crimp jack connector is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.The F-Type connector is a 75 ohm connector featuring 30 dB return loss at 1GHz. Additionally, these connectors accept 0.022-0.042 in. diameter conductors and comply with a 3/8-32 thread specification.The F-Type connector is a threaded alternative to the slide-on G-Type connector.

• Patent pending contact design provides truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics
• 30 dB return loss at 1GHz ensures high performance specification that outperforms competition
• Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
• Accommodates .022-.042 in. diameter conductor sizes. One connector accommodates a wide range of cable sizes, reducing part numbers
