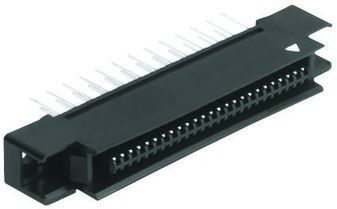

Conn Rectangular PL 80 POS 2.54mm Solder RA Thru-Hole
Conn Rectangular PL 80 POS 2.54mm Solder RA Thru-Hole
- P50E Plug offers straight and right angle throughhole options
- Right angle P50E Plug comes with and without retention clips
- Latch/eject mechanism maintains a secure connection
- Mates to the P25E, P50E, and P50 wiremount socket
- RoHS Compliant
Характеристики
| Бренд | 3M |
|---|---|
| Terminati | Solder |
| Описание продукта | 65.93 x 17.4 x 7 mm |
| Body Orie | Right Angle |
| Pitch | 2.5400 mm |
| Gender | PL |
| Schedule B | 8536695050 |
| HTSN | 8536694051 |
| Страна происхождения | Japan |
| Рабочая температура | -55 to 85 °C |
| Base Hous | Nylon |
| Type Prod | Rectangular |
| Длина | 65.93 mm |
| Contact M | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Lead Finish | Gold |
| Max Proce | 260 |
SKU: P50E-080P1-SR1-EA
