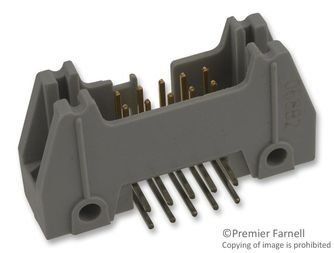

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole
- Military with 3M’s 3518 & N3518 polarizing key and centerbump polarization
- Optional ejector latches
- Mounting holes for securing header to board
- Optional polarizing posts available
- High temperature insulator option suitable for “no lead” soldering operations
- High temperature option suitable for reflow soldering using “paste in hole” techniques
- Solder tail and wrap post options
Характеристики
| Бренд | 3M |
|---|---|
| Terminati | Solder |
| Описание продукта | 32.1 x 8.6 x 27.2 mm |
| Body Orie | Straight |
| Pitch | 2.5400 mm |
| Gender | HDR |
| Schedule B | 8536695050 |
| HTSN | 8536694051 |
| Страна происхождения | United States |
| Рабочая температура | -55 to 105 °C |
| Base Hous | Polybutylene Terephthalate |
| Housing Color | Gray |
| Type Prod | Ejector Header |
| Длина | 32.1 mm |
| Contact M | Copper Alloy |
| Number Of Rows | 2 |
| Contact Plating | Gold Over Nickel |
| Number Of | 10 POS |
| Lead Finish | Tin/Lead |
| Max Proce | 235 |
| Maximum C | 1 A |
SKU: 3793-6302UG
