Comparator Single 5.5V 4-Pin UCSP T/R

The MAX9060–MAX9064 are small single comparators, ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump UCSP package with a 1mm x 1mm footprint (as small as two 0402 resistors), and a 5-pin SOT23 package. The MAX9060–MAX9064 feature an input voltage range of -0.3V to +5.5V independent of supply voltage. These devices maintain high impedance at the inputs even when powered down (VCC or VREF = 0V). They also feature internal filtering to provide high RF immunity. The MAX9060 and MAX9061 have open-drain outputs and draw quiescent supply current from a user-supplied reference voltage, VREF, between 0.9V and 5.5V. These devices consume only 100nA (max) supply current and operate over the extended -40°C to +85°C temperature range. The MAX9062, MAX9063 and MAX9064 are single comparators with an internal 0.2V reference. These devices feature either a push-pull or an open-drain output. They consume only 700nA (max) supply current. The MAX9062, MAX9063, and MAX9064 operate down to VCC = 1V over the extended -40°C to +85°C temperature range.

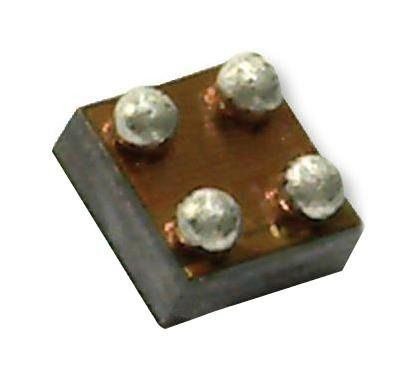

• Tiny 1mm x 1mm x 0.6mm 4-Bump UCSP
  • Footprint = Two 0402 Resistors
  • Also Available in a 5-Pin SOT23 Package

Ultra-Low Operating Current (100nA max)

Input Voltage Range = -0.3V to +5.5V

External REF Range = 0.9V to 5.5V (MAX9060/MAX9061)

Internal REF Voltage = 0.2V (MAX9062/MAX9063/MAX9064)

15µs Propagation Delay

-40°C to +85°C Extended Temperature Range
