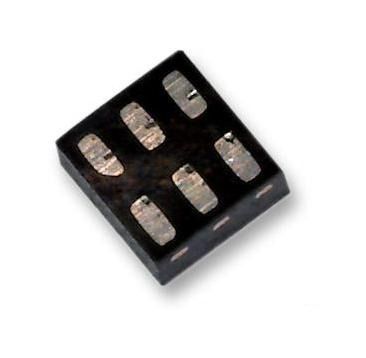

Common Mode Filter 6-Pin UQFN T/R

The ECMF02-2AMX6 is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like MIPI D-PHY, MDDI or USB 2.0.The ECMF02-2AMX6 can protect and filter one differential lane.

Very large differential bandwidth > 6 GHz

High common mode attenuation:

-34 dB at 900 MHz

-20 dB between 800 MHz and 2.2 GHz

Very low PCB space consumption

Thin package: 0.55 mm max

Lead-free package

High reduction of parasitic elements through integration

Complies with the following standards:

IEC 61000-4-2 level 4 input and output pins:±15 kV (air discharge)±8 kV (contact discharge)
