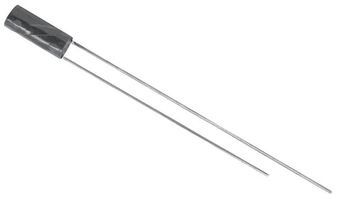

Cap Tant Solid 6.8uF 2VDC 10% 1.96 X 4.06mm AXL
Cap Tant Solid 6.8uF 2VDC 10% 1.96 X 4.06mm AXL
- Subminiature package size and light weight
- Cylindrical case with axial or radial leads
- 2 VDC to 50 VDC
- 0.001 µF to 68 µF
- Operating temperature range: - 55 °C to + 125 °C
- High stability and reliability
- Tested in accordance with MIL-PRF-49137
- Unique and comprehensive custom design capability
Характеристики
| Бренд | Vishay |
|---|---|
| Длина | 4.06 mm |
| Polarity | Polar |
| Диаметр | 1.96 mm |
| Dissipati | 10 % |
| Рабочая температура | -55 to 125 °C |
| Capacitan | 6.8 uF |
| Lead Finish | Solder |
| Описание продукта | 1.96 x 4.06 |
| Voltage Dc | 2 V |
| Tolerance | 10 % |
| Lead Diameter | 0.25 mm |
| Schedule B | 8532210080 |
| HTSN | 8532210080 |
| Leakage Current | 0.5000 uA |
| Type Prod | Axial |
SKU: HA6.8-2C5AK
