CAP MLCC

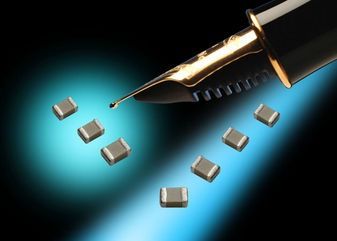

The LT series comprising a range of low profile products in our X5R and X7R dielectric. X5R is a Class II dielectric with temperature varation of capacitance within ±15% from –55°C to +85°C. Offerings include 0201, 0402, 0603, 0805 1206, and 1210 packages in compact, low profile designs. The LT series is ideal for decoupling and filtering applications where height clearance is limited.Also expanding the low profile products in our X7R dielectric. X7R is a Class II dielectric with temperature variation of capacitance within ±15% from -55°C to +125°C.

• Thickness: 0.15mm to 1.02mm
• Voltage Range: 4V to 25V
• Capacitance Range: 0.1µF to 10µF
• Case Sizes: 0201 to 1210
