Avnet S32V ADAS Development Kit

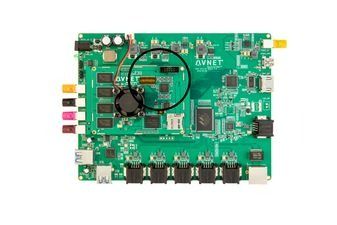

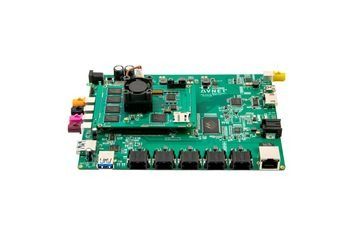

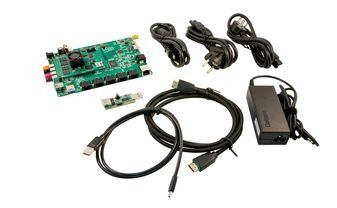

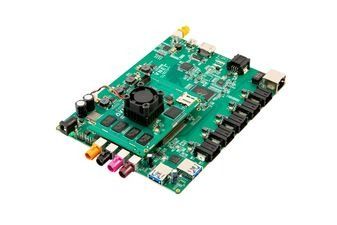

The Avnet S32V development kit is an Arm® Cortex-A53 quad core based development platform for vision (front and surround view cameras), machine learning, and sensor fusion applications. The platform is based on a NXP S32V234 MPU integrated on a system-on-module (SOM). The SOM includes SDRAM, eMMC Flash, microSD card cage, QSPI, power, and various communications and video interfaces. The SOM plugs into the provided carrier board that includes interfaces for up to five cameras, HDMI output, six 100 Mb Ethernet ports, USB 3.0, debug UART, CAN, and much more.For technical support on the S32V Development kit, please e-mail S32Vsupport@avnet.comKit Includes:S32V SOM + Carrier BoardHDMI CableUSB cableAvnet USB-to-UART Adapter16GB SD Card12V DC Power SupplyTarget Applications :Automotive Vision SystemsDriver Monitoring System (DMS)Occupant Monitoring Systems (OMS)Front View Camera SystemsSurround View Systems

• SOM
  • NXP S32V234 MPU
  • 2GB DDR3L SDRAM (Qual 16-bit DDR3L interface)
  • microSD card cage
  • 32GB eMMC Flash
  • 256MB QSPI Flash
  • Power regulation
  • JTAG interface
  • PCIE interface
  • 2-channel VIU interface
  • 2-channel MIPI-CSI interface
  • DCU interface
  • 2-channel CAN interface
• Carrier Board
  • Four camera inputs based on the MAX9286
  • One camera input based on the MAX96706
  • 5-Channel 88Q5050 Ethernet Switch (100M Base)
  • One 88Q1010 Ethernet port (100M Base)
  • HDMI Out
  • 2 x SPI port
  • 2 x CAN connector
  • 2 x USB3.0
