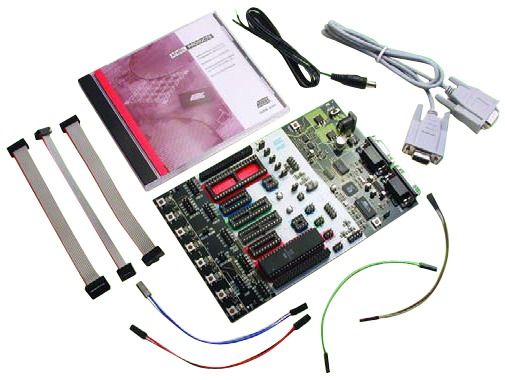

AT90S8515 AVR Flash Microcontroller Starter Kit

The AT90S1200 is a low-power CMOS 8-bit microcontroller based on the AVR RISCarchitecture. By executing powerful instructions in a single clock cycle, the AT90S1200achieves throughputs approaching 1 MIPS per MHz allowing the system designer tooptimize power consumption versus processing speed. The AVR core combines a rich instruction set with the 32 general purpose working registers.All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU),allowing two independent registers to be accessed in one single instruction executed inone clock cycle. The resulting architecture is more code efficient while achievingthroughputs up to ten times faster than conventional CISC microcontrollers.

• Utilizes the AVR® RISC Architecture
• AVR
  • High-performance and Low-power RISC Architecture
  • 89 Powerful Instructions
  • Most Single Clock Cycle Execution
  • 32 x 8 General Purpose Working Registers
  • Up to 12 MIPS Throughput at 12 MHz
• Data and Non-volatile Program Memory
  • 1K Byte of In-System Programmable Flash Endurance: 1,000 Write/Erase Cycles
  • 64 Bytes of In-System Programmable EEPROM Endurance: 100,000 Write/Erase Cycles
  • Programming Lock for Flash Program and EEPROM Data Security
• Peripheral Features
  • One 8-bit Timer/Counter with Separate Prescaler
  • On-chip Analog Comparator
  • Programmable Watchdog Timer with On-chip Oscillator
  • SPI Serial Interface for In-System Programming
• Special Microcontroller Features
  • Low-power Idle and Power-down Modes
  • External and Internal Interrupt Sources
  • Selectable On-chip RC Oscillator for Zero External Components
• Specifications
  • Low-power, High-speed CMOS Process Technology
  • Fully Static Operation
• Power Consumption at 4 MHz, 3V, 25°C
  • Active: 2.0 mA
  • Idle Mode: 0.4 mA
  • Power-down Mode: <1 µA
• I/O and Packages
  • 15 Programmable I/O Lines
  • 20-pin PDIP, SOIC and SSOP
• Operating Voltages
  • 2.7 - 6.0V (AT90S1200-4)
  • 4.0 - 6.0V (AT90S1200-12)
• Speed Grades
  • 0 - 4 MHz, (AT90S1200-4)
  • 0 - 12 MHz, (AT90S1200-12)
