ARM Cortex-M3 Microcontroller MIFARE PEGODA Contactless Smart Card Reader Evaluation Kit

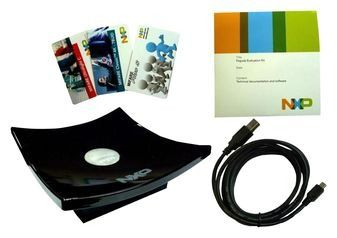

The MFEV710 design in kit includes the MFRD710 contactless smartcard reader, a design based on the MFRC523 contactless reader IC. The kit supports the entire MIFARE portfolio: MIFARE Classic, MIFARE DESFire, MIFARE Plus, and MIFARE Ultralight C, including SAM AV2 (in x- and non-x modes). The kits also offer full support of MIFARE discover, with a reader library for all the MIFARE card products.

• Multiprotocol ISO/IEC 14443 and MIFARE operation
• PC/SC-based architecture on widely deployed hardware solutions
• Full support for entire MIFARE card portfolio and MIFAREdiscover
• SAM support in standard or x-mode
• ARM Cortex-M3 microcontroller with integrated flash memory
• Firmware in source code and binaries
• USB host interface to PC and Windows-based user interface
• Optional support for RS232, RS485, JTAG, Ethernet
