Analog Switch Single Dual SPST 16-Pin USON Embossed T/R
BH6260MWX is SPST x 2ch and Inverter x 2ch analog switches. Analog SW0 and SW1 pass USB 2.0 high-speed signal. Analog SW2 and SW3 pass UART signal. Moreover, this is guaranteed from 2.9V to 3.7V as for the range of the power-supply voltage.
·5O switches connect inputs to outputs
·Low Capacity Analog SW 2ch with clamp Diode
·1.8V Output Inverter 2ch

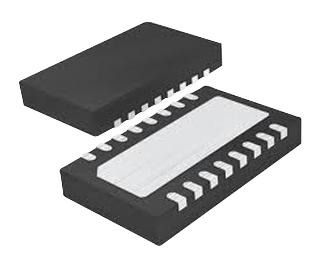

·16-Pin SON Package
·Low Capacity Analog SW 2ch with clamp Diode
·1.8V Output Inverter 2ch
·16-Pin SON Package
Характеристики
| Бренд | ROHM |
|---|---|
| Supplier | USON |
| Screening Level | Industrial |
| Рабочая температура | -40 to 85 °C |
| Описание продукта | 3.3 x 1.5 x 0.6(Max) |
| Operating | 3.7|2.9|3.3 V |
| Type Prod | Analog Switch |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Maximum P | 850 mW |
| Output Si | Single |
| Chip Enab | Да |
| Number Of | 1 |
| Maximum O | 13@3.3V Ohm |
| Number Of | 1 |
| Configuration | Dual SPST |
| Input Sig | Single |
| Power Sup | Single |
| Number Of | 1 |
| Polarity | Non-Inverting |
| Propagati | 50 pF |
| Maximum P | 0.25 ns |
| Maximum H | -3 mA |
| Maximum L | 3 mA |
| Operating | 0.01@3.3V mA |
SKU: BH6260MWX-E2
