Analog Switch Single DPDT 10-Pin UTQFN

The MAX14585/MAX14585A high-ESD-protected double-pole/double-throw (DPDT) switches multiplex Hi-Speed (480Mbps) USB and analog signals such as AC-coupled audio or video. These devices combine the low on-capacitance (CON) and low on-resistance (RON) necessary for high-performance switching applications in portable electronics and include an internal negative supply to pass audio signals that swing below ground down to -1.8V. The devices also handle USB low-/full-speed signaling and operate from a 2.7V to 5.5V supply. The devices feature a VBUS detection input (VB) that can handle voltage up to 28V to automatically switch to the USB signal path upon detection of a valid VBUS signal (VB > VVBDET). In a dead battery situation, the voltage on VB can supply power to the part if VB is greater than 4.5V. The MAX14585 features internal shunt resistors on the audio path to reduce clicks and pops heard at the output. The MAX14585/MAX14585A are available in a space-saving, 10-pin, 1.4mm x 1.8mm UTQFN package and operate over the -40°C to +85°C temperature range.

• Low Power Consumption
  • Low Supply Current 7µA (typ)
  • Single 2.7V to 5.5V Supply Operation, V_CC

Flexible Design

• Dual Power-Supply Architecture, V_B and V_CC
• ANO_ Channel Override Control Input

High Level of Integration for Performance

• 28V-Capable V_B Input with Automatic UNC_ Selection by V_BUS Detection
• Low-Capacitance Hi-Speed USB for Both Channels (UNC_ and ANO_)
• Distortion-Free Negative Signal Throughput Down to -1.8V on ANO_ Channel
• 3O (typ) On-Resistance
• 960MHz Bandwidth
• 0.04% THD+N Audio Channel
• ±15kV Human Body Model (HBM) ESD on COM1, COM2

Saves Board Space

• Internal Shunt Resistor Reduces Clicks and Pops (MAX14585)

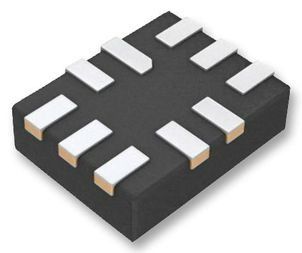

• 10-Pin, 1.4mm x 1.8mm UTQFN Package
