Analog Switch Single DPDT 10-Pin Ultra TQFN

The MAX4983E/MAX4984E are high ESD-protected analog switches that combine the low on-capacitance and low on-resistance necessary for high-performance switching applications. COM1 and COM2 are protected against ±15kV ESD without latchup or damage. The devices are ideal for USB 2.0 Hi-Speed applications at 480Mbps. The switches also handle all the requirements for USB low- and full-speed signaling. The MAX4983E/MAX4984E double-pole/double-throw (DPDT) switches are fully specified to operate from a single +2.8V to +5.5V power supply and are protected against a +5.5V short to COM1 and COM2. This feature makes the MAX4983E/MAX4984E fully compliant with the USB 2.0 specification of VBUS fault protection. The devices feature low-threshold-voltage logic inputs, permitting them to be used with low I/O voltage systems. The MAX4983E features an active-low enable input (active-low EN) that when driven high sets the device in shutdown mode. The MAX4984E features an active-high enable input (EN) that when driven low sets the device in shutdown mode. When the device is in shutdown mode, the quiescent supply current is reduced to 0.1µA. The MAX4983E/MAX4984E are available in a space-saving, 10-pin, 1.4mm x 1.8mm UTQFN package, and operate over a -40°C to +85°C temperature range.

• USB Hi-Speed Switching
• ESD Protection on COM
  • ±15kV Human Body Model
  • ±15kV IEC 61000-4-2 Air Gap
  • ±8kV IEC 61000-4-2 Contact

Power-Supply Range: +2.8V to +5.5V

Low 5O (typ) On-Resistance (R_ON)

-3dB Bandwidth: 950MHz (typ)

Compatible with Logic I/O Down to 1.4V

COM Analog Inputs Fault Protected Against Shorts to +5.5V

Low Supply Current 0.6µA (typ)

Enable Input:

• Active-Low (Active-Low EN) MAX4983E
• Active-High (EN) MAX4984E

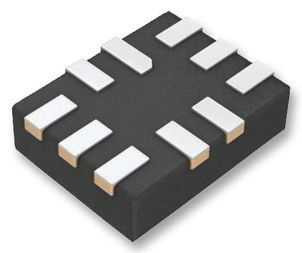

Small 10-Pin, 1.4mm x 1.8mm UTQFN
