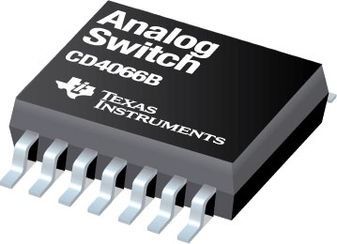

Analog Switch Quad SPST 14-Pin SOIC T/R

CD4066B is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016B, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full input-signal range. The CD4066B consists of four bilateral switches, each with independent controls. Both the p and the n device in a given switch are biased on or off simultaneously by the control signal. As shown in Figure 1, the well of the n-channel device on each switch is tied to either the input when the switch is on or to VSS when the switch is off. This configuration eliminates the variation of the switch-transistor threshold voltage with input signal and, thus, keeps the on-state resistance low over the full operating-signal range. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range. However, for sample-and-hold applications, the CD4016B is recommended.

15-V Digital or ±7.5-V Peak-to-Peak Switching

125-O Typical On-State Resistance for 15-V Operation

Switch On-State Resistance Matched to Within 5 O Over 15-V Signal-Input Range

On-State Resistance Flat Over Full Peak-to-Peak Signal Range

High On/Off Output-Voltage Ratio: 80 dB Typical at f_is = 10 kHz, R_L = 1 kO

High Degree of Linearity: <0.5% Distortion Typical at f_is = 1 kHz, V_is = 5 V p-p, V_DD–V_SS O

Extremely Low Off-State Switch Leakage, Resulting in Very Low Offset Current and High Effective Off-State Resistance: 10 pA Typical at V_DD–V_SS = 10 V, T_A = 25°C

Extremely High Control Input Impedance (Control Circuit Isolated From Signal Circuit): 10¹² O Typical

Low Crosstalk Between Switches: –50 dB Typical at f_is = 8 MHz, R_L = 1 kO

Matched Control-Input to Signal-Output Capacitance: Reduces Output Signal Transients

Frequency Response, Switch on = 40 MHz (Typical)

100% Tested for Quiescent Current at 20 V

5-V, 10-V, and 15-V Parametric Ratings

Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of B-Series CMOS Devices

Applications:

• Analog Signal Switching/Multiplexing:
     Signal Gating, Modulator, Squelch Control, Demodulator, Chopper, Commutating Switch
• Digital Signal Switching/Multiplexing
• Transmission-Gate Logic Implementation
• Analog-to-Digital and Digital-to-Analog Conversion
• Digital Control of Frequency, Impedance, Phase, and Analog-Signal Gain
