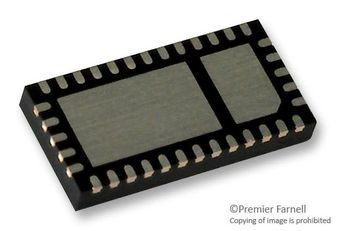

Analog Switch Quad DPDT 36-Pin TQFN EP
The MAX4758/MAX4759 quad double-pole/double-throw (DPDT) analog switches operate from a single +1.8V to +5.5V supply. These switches feature low 0.5O on-resistance for audio switching and a low 25pF capacitance for data switching. The MAX4758 has eight 0.5O on-resistance switches to switch audio signals. The MAX4759 has four 0.5O on-resistance switches to route audio signals and four 25pF capacitance switches to route data signals. The MAX4758/MAX4759 have four logic inputs to control the switches in pairs. The MAX4758/MAX4759 are available in a small 36-pin (6mm x 6mm) thin QFN and 36-bump (3mm x 3mm) chip-scale package (UCSP).
- Data and Audio Signal Routing
- Low On-Resistance (0.5O) Audio Switches
- 0.2O On-Resistance Flatness
- 0.1O Channel-to-Channel Matching
- Low-Capacitance (25pF) Data Switches (MAX4759)
- 0.2ns Skew (MAX4759)
- 0.03% THD
- +1.8V to +5.5V Supply Range
- Rail-to-Rail Signal Handling
- Tiny 36-Bump UCSP (3mm x 3mm)
- 36-Pin Thin QFN (6mm x 6mm)
Характеристики
| Бренд | Maxim Integrated |
|---|---|
| Supplier | TQFN EP |
| Рабочая температура | -40 to 85 °C |
| Описание продукта | 6 x 6 x 0.73 mm |
| Operating | 5.5|1.8 V |
| Lead Finish | Matte Tin |
| Max Proce | 260|300 |
| Msl Level | 1 |
| Type Prod | Analog Switch |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | Taiwan |
| Maximum P | 2105 mW |
| Output Si | Differential |
| Chip Enab | Да |
| Number Of | 8 |
| Maximum O | <1 Ohm |
| Maximum T | 140@2.7V ns |
| Maximum O | 0.85@2.7V Ohm |
| Number Of | 4 |
| Configuration | Quad DPDT |
| Input Sig | Differential |
| Power Sup | Single |
| Number Of | 16 |
| Polarity | Non-Inverting |
| Maximum H | 300 mA |
| Maximum L | 300 mA |
| Operating | 0.001@4.3V |
SKU: MAX4758ETX+
