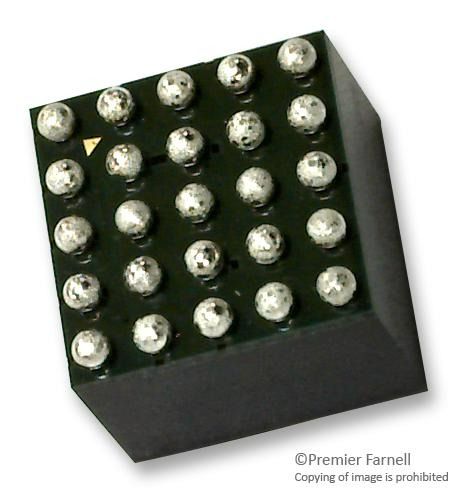

Analog Switch Hex DPDT 25-Pin WLCSP T/R

FSA4480 is a high performance USB Type-C port multimedia switch which supports analog audio headsets. FSA4480 allows the sharing of a common USB Type-C port to pass USB2.0 signal, analog audio, sideband use wires and analog microphone signal. FSA4480 also supports high voltage on SBU port and USB port on USB Type-C receptacle side.

• Power Supply: VCC, 2.7 V to 5.5 V
• USB High Speed (480 Mbps) Switch:
  • SDD21 -3dB bandwidth: 950 MHz
  • 3? RON Typical
• Audio Switch
  • Negative Rail Capability: -3 V to +3 V
  • THD+N = -110 dB; 1 VRMS, f = 20 Hz 20 kHz, 32 W Load
  • 1? RON Typical
• High Voltage Protection
  • 20 V DC Tolerance on Connector Side Pins
  • Over Voltage Protection: VTH = 5 V (Typ)
• OMTP and CTIA Pinout Support
• Support Audio Sense Path
• 25-Ball WLCSP Package (2.24 mm x 2.28 mm)
