ADC Single 2-Step Flash 20Msps 8-bit Parallel 24-Pin SOIC

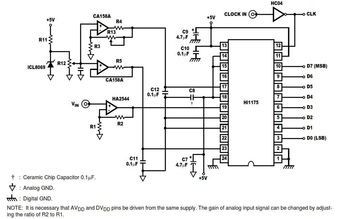

The HI1175 is an 8-bit, analog-to-digital converter built in a 1.4µm CMOS process. The low power, low differential gain and phase, high sampling rate, and single 5V supply make the HI1175 ideal for video and imaging applications. The adoption of a 2-step flash architecture achieves low power consumption (60mW) at a maximum conversion speed of 20MSPS (Min), 35MSPS typical with only a 2.5 clock cycle data latency. The HI1175 also features digital output enable/disable and a built in voltage reference. The HI1175 can be configured to use the internal reference or an external reference if higher precision is required.

• Resolution 8-Bit ±0.3 LSB (DNL)
• Maximum Sampling Frequency 20MSPS
• Low Power Consumption 60mW (at 20MSPS Typ) (Reference Current Excluded)
• Built-In Sample and Hold Circuit
• Built-In Reference Voltage Self Bias Circuit
• Three-State TTL Compatible Output
• Single +5V Power Supply
• Low Input Capacitance 11pF (Typ)
• Reference Impedance 300? (Typ)
• Evaluation Board Available (HI1175-EV)
• Low Cost
• Direct Replacement for the Sony CXD1175
