Adaptive Cable Equalizer 48-Pin TCSP T/R

The LMH0387 3 Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver provides a single chip interface to a BNC. The device can be configured either in the input mode as an equalizer to receive data over coaxial cable or in the output mode as a cable driver to transmit data over coaxial cable. The same I/O pin is used both for the input and the output functions of the device, allowing the system designer the flexibility to use a BNC attached to the device as either an input or an output. The LMH0387 offers designers flexibility in system design and quicker time to market. The device operates over a wide range of data rates from 125 Mbps to 2.97 Gbps (DC to 2.97 Gbps when driving cable) and supports SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M. The return loss network is integrated within the device so no external components are required to meet the SMPTE return loss specification.In the input mode, the LMH0387 features include a power-saving sleep mode, programmable output common mode voltage and swing, cable length indication, launch amplitude optimization, input signal detection, and an SPI interface. In the output mode, the LMH0387 features include two selectable slew rates for SMPTE 424M / 292M and SMPTE 259M compliance, and output driver power down control.The device is available in a 7 x 7 mm 48-pin laminate Thin Chip Scale Package (TLGA).

SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M Compliant

Supports DVB-ASI at 270 Mbps

Data Rates: 125 Mbps to 2.97 Gbps when Receiving (DC to 2.97 Gbps when Driving Cable)

Equalizes up to 120 Meters of Belden 1694A at 2.97 Gbps, up to 200 Meters of Belden 1694A at 1.485 Gbps, or up to 400 Meters of Belden 1694A at 270 Mbps

Integrated Return Loss Network (No External Components Required)

Power Saving Modes

Cable Driver Selectable Slew Rate

Internally Terminated 100? LVDS Receiver Outputs with Programmable Common Mode Voltage and Swing

Programmable Launch Amplitude Optimization for Receiver

Cable Length Indication

Single 3.3V Supply Operation

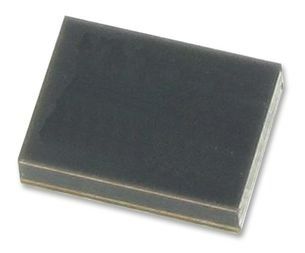

48-Pin Laminate TLGA Package

Industrial Temperature Range: -40°C to +85°C
