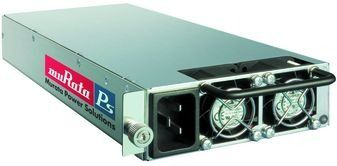

AC/DC Power Supply Single-OUT 48V 41.3A 2KW
The D1U-W-2000 is a 2000 Watt, power-factor-corrected (PFC) front-end power supply for hot-swapping redundant systems. The main output is 48V and standby output of either 12V, 5V or 3.3V. Packaged in 1U low profile, it is designed to deliver reliable bulk power to servers, workstations, storage systems or any 48V distributed power architecture systems requiring high power density. The highly efficient electrical and thermal design with internal cooling fans supports reliable operation conditions. The D1U-W-2000 is designed to auto-recover from over-temperature faults. Status information is provided with front panel LEDs, logic signals and I2 C management interface. Three units can be packaged into a 19" 1U power shelf to provide up to 6.0kW of power.
- RoHS compliant
- 2000W (220Vac), 1200W (110Vac) Output power
- 48V Main output, 3.3V, 5V or 12V standby output
- 1U sized; dimensions 4.75"x12.00"x1.61"
- 21.9 Watts per cubic inch density
- N+1 redundancy capable, including hot-docking
- Active current sharing on main output
- Over-voltage, over-current, over-temperature protection
- Internal cooling fans
- I²C Bus Interface with status indicators
- 12V Standby Output
Характеристики
| Бренд | Murata |
|---|---|
| Schedule B | 8504409580 |
| HTSN | 8504409580 |
| Input Voltage | 90 to 264 V |
| Type Prod | Regulated |
| Рабочая температура | 0 to 50 °C |
| Maximum O | 2000 W |
| Output Voltage | 48 V |
| Описание продукта | 312.89 x 41 x 132.85 mm |
| Input Frequency | 47 to 63 Hz |
| Output Current | 41.3 A |
| Minimum I | 3000 Vac |
| Number Of | 1 |
| Maximum C | 15(rms) A |
SKU: D1U-W-2000-48-HB2C
