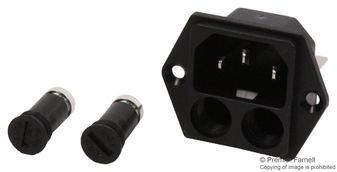

4707 POWER ENTRY MODUL 10A
4707 POWER ENTRY MODUL 10A
Panel Mount: Screw-on mounting from front or rear-side 2 Functions: Appliance Inlet protection class I or II, fuse-links 5x20 mm 1- or 2-pole V-Lock notch standard Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13 Solder terminals 3.8 x 0.8 mm or quick connect terminals 6.3 x 0.8 mm
Характеристики
| Бренд | SCHURTER |
|---|---|
| Number Of | 3 |
| Type Prod | Unfiltered |
| Длина | 44 mm |
| Number Of Ports | 1 |
| Maximum C | 10 A |
| Connector Type | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| Schedule B | 8536695050 |
| HTSN | 8536698000 |
| Описание продукта | 44 x 35.8 x 34 mm |
| Additiona | Fuse |
| Страна происхождения | Czech Republic |
| Maximum V | 250 Vac |
SKU: 4707.2000
