3V PH.MODULE S.VIEW-E3

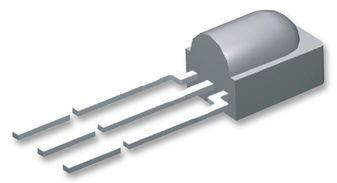

The TSMP58000 is a miniaturized sensor for receiving the modulated signal of infrared remote control systems. A PIN diode and preamplifier are assembled on a lead frame, the epoxy package is designed as an IR filter. The modulated output signal, carrier out, can be used for code learning applications.

• Photo detector and preamplifier in one package
• AC coupled response from 20 kHz to 60 kHz, all data formats
• Improved shielding against electrical field disturbance
• TTL and CMOS compatibility
• Output active low
• Supply voltage 2.5 V to 5.5 V, typically the device works in the range between 2.0 V and 5.5 V
• Carrier out signal for code learning functions
