24-26 AWG, CATEGORY 5E, SHIELDED MODULAR
24-26 AWG, CATEGORY 5E, SHIELDED MODULAR
- Meets all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications
- Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
- Used in STPCH series patch cords providing Category 5e performance
- Patented tangle-free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 microinches of gold for superior performance
- Shielded plug housing provides conductive path for grounding
- Terminates 24 – 26 AWG 100 ohm stranded or solid shielded cable with max. conductor insulation diameter of 0.040 in.

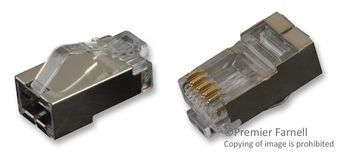

- 8-position, 8-wire shielded modular plug.
Характеристики
| Бренд | Panduit |
|---|---|
| Описание продукта | 11.73 x 22.91 mm |
| Number Of | 8 POS |
| Body Orie | Straight |
| Terminati | Crimp |
| Type Prod | Modular Plug |
| Pitch | 1.0100 mm |
| Gender | PL |
| Contact Plating | Gold Over Nickel |
| Длина | 11.73 mm |
| Number Of Ports | 1 |
| Lead Finish | Gold |
| Schedule B | 8536694030 |
| HTSN | 8536694030 |
| Страна происхождения | Costa Rica |
| Contact M | Phosphor Bronze |
| Base Hous | Thermoplastic |
| Number Of | 8 |
SKU: MPS588-C
