230V Constant Current Regulators LED Lighting Solution Evaluation Kit

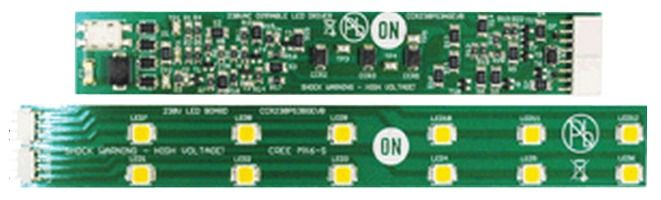

The CCR230PS3GEVK evaluation kit is a complete, offline linear LED lighting solution featuring ON Semiconductor Constant Current Regulators (CCRs). The evaluation kit is composed of two daughterboards—a driver board and an LED board. These boards were designed as separate modules to permit experimentation with different LEDs. The circuit featured on this board is from the design note DN05047, a Three-Stage, Parallel-to-Series topology for high PF, good efficiency, and good dimmability. The driver may be modified to accommodate different LED strings. The driver evaluation board is also available individually for experimentation with the Three-Stage Parallel-to-Series topology. .
